LMM THEFIRST MILL BEARING
Excellent products, reasonable prices, to provide users with 100% satisfactory after-sales service
For users who use our company’s products, we are responsible for explaining the relevant common sense of installation and use. When users use new products and special products, our company will send technical personnel to the site to track the service, and we will respond to the quality problems raised by users. Professionals will be sent to solve the problem. Provide users with 100% satisfactory after-sales service.
Product selection
Please provide design data for special processing requirements

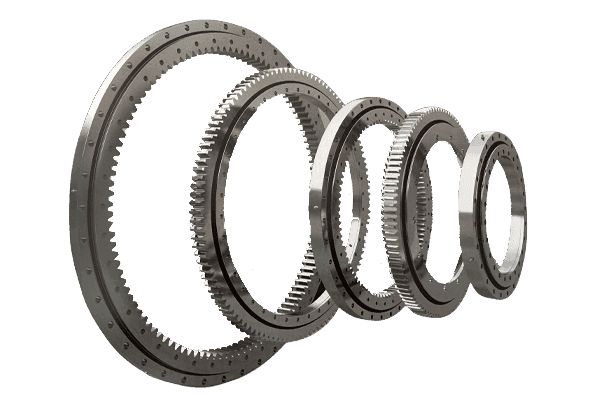

Slewing bearings
Slewing bearings are widely used in real industry and are called “joints of machines”
It is mainly used in:
Truck cranes, railway cranes, port cranes, marine cranes, metallurgical cranes, container cranes, excavators, filling machines, and CT standing wave therapy devices, navigation instruments
Radar antenna mounts, missile launchers, tanks, robots, and revolving restaurants.
Brand name: LMM GROUP
Packing Details : Wooden box with fumigation or Wooden Fram
Delivery Details: 30~60days or Based on the quantity
Shipping: Sea freight、Land freight、Air freight
Customization:
Customized logo(Min. Order 1 piece)
Customized packaging(Min. Order 1 piece)
Checking report: Material Report、Hardness Report、UT/MT Report、Dimensions checking report、Mechanical Property Test Report
Processing technology: forging
Slewing ball bearings are required to work under low speed or discontinuous operation conditions, and most of them operate under eccentric loads. In addition to bearing axial loads and radial loads, they must also withstand overturning moments. The grade of slew plate bearings, according to the frequency of use of slew plate bearings, the standard number of working cycles of slew plate bearings are classified as follows:
Standard working cycle classification of slewing bearings
When users use slew plate bearings, please consult the technical service department for an estimate of the allowable contact stress of the slew plate bearing, the load-bearing capacity and service life of the slew plate bearing.
| The frequency of use of slewing bearings | Standard working cycle number Lc | Slewing bearing usage grade |
| Occasional use, long periods of inactivity | 0.063×106 | A |
| Regular use, but not concentrated use | 0.2×106 | B |
| Centralized operation and regular use | 0.063×106 | C |
| Centralized operation of multiple shifts and regular use | 2×106 | D |
When installing the slew bearing, the bolts should have sufficient prestress, and try to use grade 8.8, 10.9 or 12.9 bolts to ensure reliable work.
