LMM THEFIRST MILL BEARING
Excellent products, reasonable prices, to provide users with 100% satisfactory after-sales service
For users who use our company’s products, we are responsible for explaining the relevant common sense of installation and use. When users use new products and special products, our company will send technical personnel to the site to track the service, and we will respond to the quality problems raised by users. Professionals will be sent to solve the problem. Provide users with 100% satisfactory after-sales service.
Product selection
Please provide design data for special processing requirements

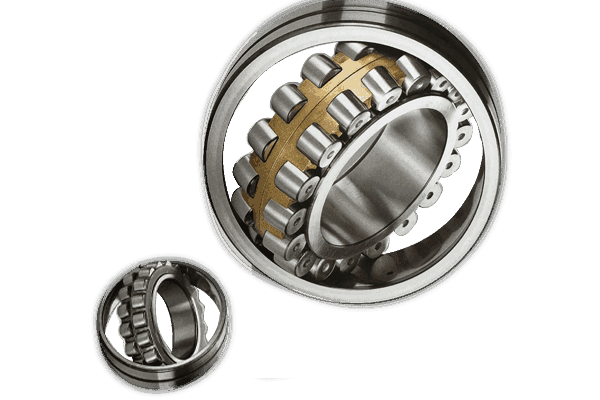

Spherical roller bearings
It is suitable for large-scale mechanical equipment such as mining, metallurgy, papermaking, and construction.
Brand name: LMM GROUP
Packing Details : Wooden box with fumigation or Wooden Fram
Delivery Details: 30~60days or Based on the quantity
Shipping: Sea freight、Land freight、Air freight
Customization:
Customized logo(Min. Order 1 piece)
Customized packaging(Min. Order 1 piece)
Checking report: Material Report、Hardness Report、UT/MT Report、Dimensions checking report、Mechanical Property Test Report
Processing technology: forging
Size
The outer dimensions of the bearings listed in the table are consistent with IS015-1981.
Angle alignment error
The design of the spherical roller bearing enables it to have an automatic self-aligning function, that is, the bearing itself can adjust the angular alignment error between the inner and outer rings. Under normal load and working conditions, when the inner ring rotates, the misalignment values given in the table below are allowed. Whether this given value can be fully achieved depends on the design of the bearing configuration and the type of seal.
Tolerance
Spherical roller bearings with cylindrical bore or tapered bore have ordinary tolerances.
Internal clearance
Standard spherical roller bearings have normal radial internal clearance. Almost all bearings are available with a C3 clearance, and some are even available with a larger C4 clearance. Some sizes can be supplied with less than normal grade C2 clearance. When ordering bearings with non-standard radial clearance (including C5), you should first check whether they are available. These clearance values apply to the bearing at zero measuring load and unmounted.
| Bearing | Allow misalignment values |
| — | angle |
| Series 213 | 1 |
| Series 222 | 1.5 |
| Series 223 | 2 |
| Series 230 | 1.5 |
| Series 231 | 1.5 |
| Series 232 | 2.5 |
| Series 239 | 1.5 |
| Series 240 | 2 |
| Series 241 | 2.5 |
